“The Full Monty” Hybrid Fossil Prep Station with accessories package

Item Sold

“The Full Monty” Hybrid Fossil Prep Station with accessories package

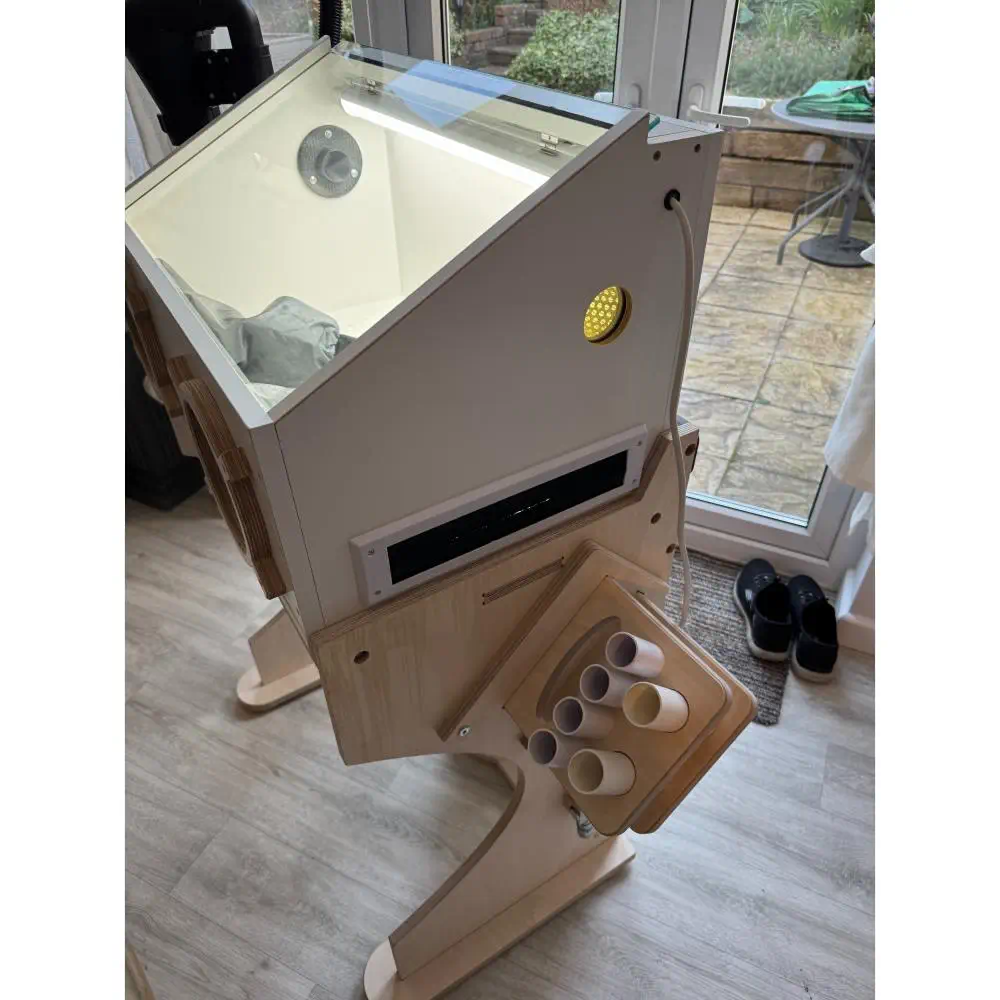

Hybrid Fossil Prep Station

These are designed and built by me in my Hertfordshire workshop, using state of the art CAD design and CNC machining.

Years of prepping and collecting has lead to this design

COLLECTION FROM WHEATHAMPSTEAD , HERTFORDSHIRE, AL4 AREA

OR

Mainland England and Wales delivery and assembly for £189 payable separately





ALLOW 2 TO 3 WEEKs FOR MANUFACTURE

Extraction

The other end plugs into you HPLV vacuum extractor (min 1.2 Kw) and  must be  H Class example of this are (but not limited to)  , Metabo ASA 30 H , MAXVAC Dura DV35-HBA

This is not suitable to be plumbed into a 100mm/4 inch system, it is designed for 32 to 50mm H class vacuums

IN A NUTSHELL  – MINIMUM RECOMMENDED SETUP AND  ACCESSORIES IF USING INDOOR EXTRACTION
  • SETUP SHOULD BE LOCATED IN AN OUTBUILDING OR GARAGE/SHED/ Dedicated room, I DO NOT RECOMMEND DOING ANY PREP-WORK IN LIVING AREAS.
  • JUST DOING PEN WORK – AN H CLASS VACUUM
  • ABRASIVE WORK OR HEAVY DUTY GRINDING – H CLASS VACUUM DUAL CYCLONE WITH EASY EMPTY FEATURE AND OUR FINE DUST FILTER TO CAPTURE MOST OF THE FINE DUST NOT EXTRACTED BY THE CYCLONES. (THUS SAVING ON THOSE EXPENSIVE H CLASS FILTER BAGS)
  •  USING THE TOOL BLOCK BAR IS ESSENTIAL TO STOP DUST ESCAPING.
  • Our cabinet can be set up to use the Vaniman Air Abrasive system.
  • Always wear a personal dust mask even when using a cabinet and extraction and especially when cleaning out the cabinet / emptying the cyclones.
  • If using a micro air abrasive it is recommended to use Aluminium oxide rather than iron powder unless you are fully able to ground the installation.
System features:

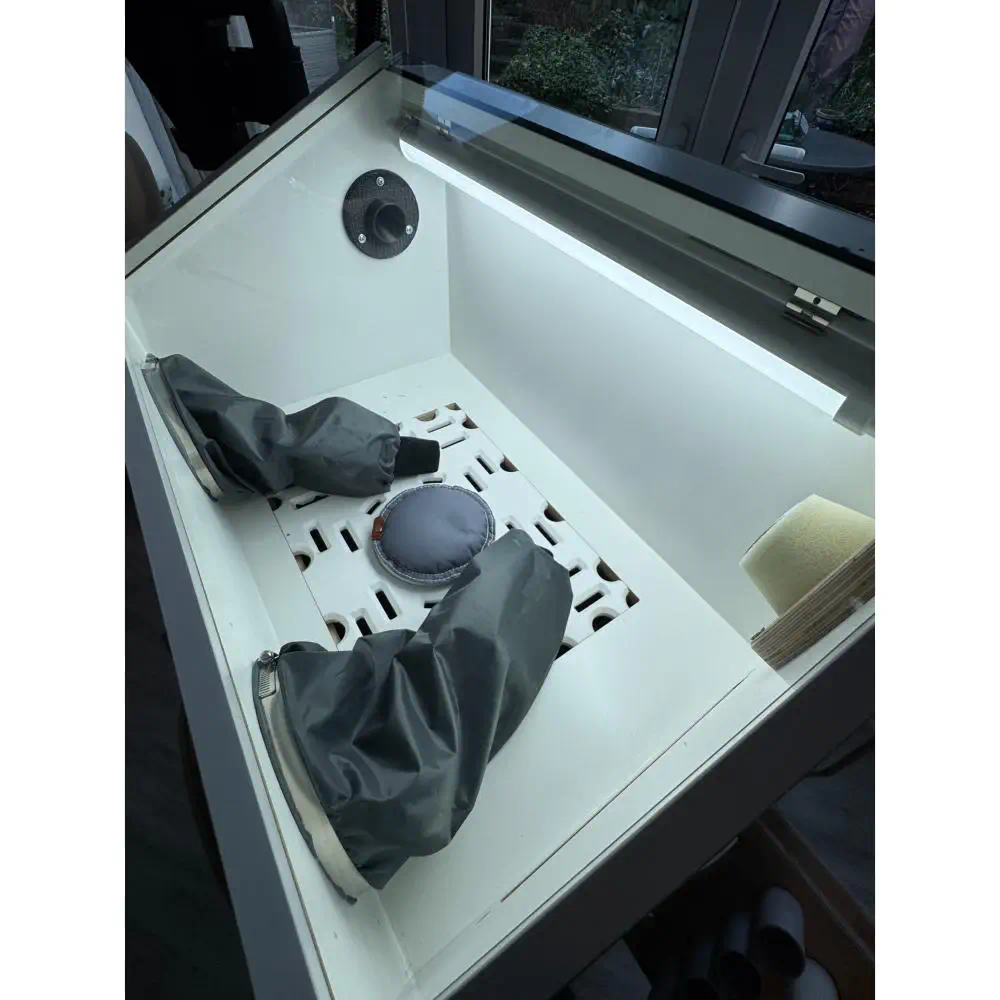

  • 6mm toughened glass for premier safety. Also polished glass edges and rounded corners. Far superior to Perspex or thinner glass
  • Side brush slot for tools. (Right hand side as standard but we can make it left if you let me know at time of ordering.
  • Special 3D printed 50 mm extraction outlet (This fits our bolt on cyclone, an adapter is also provided to fit most vacuums).  Other bespoke options available (eg rear 100mm / 4 inch outlet)
  • Dust proof full width daylight LED light IP65 Rated
  • Arm Cuffs with soft wrist bands and open ends for handling your fossils with or without gloves
  • Metal Reinforced arm ports with seal
  • Sliding glass for those larger specimens or to clean
  • All white ply 18mm Laminated birch ply  construction for robustness and longevity far outclassing anything made from MDF or chipboard. Standard furniture grade birch ply for the stand.
  • Colour matched cut edges on the cabinet
  • Rubber feet for grip and reduced vibration.
  • Replaceable air  inlet filter
  • Silicon sealed corners
  •  Brush to clean out
  • Extraction hose adapter
  • Brush bar dust block for when using air abrasive (essential)

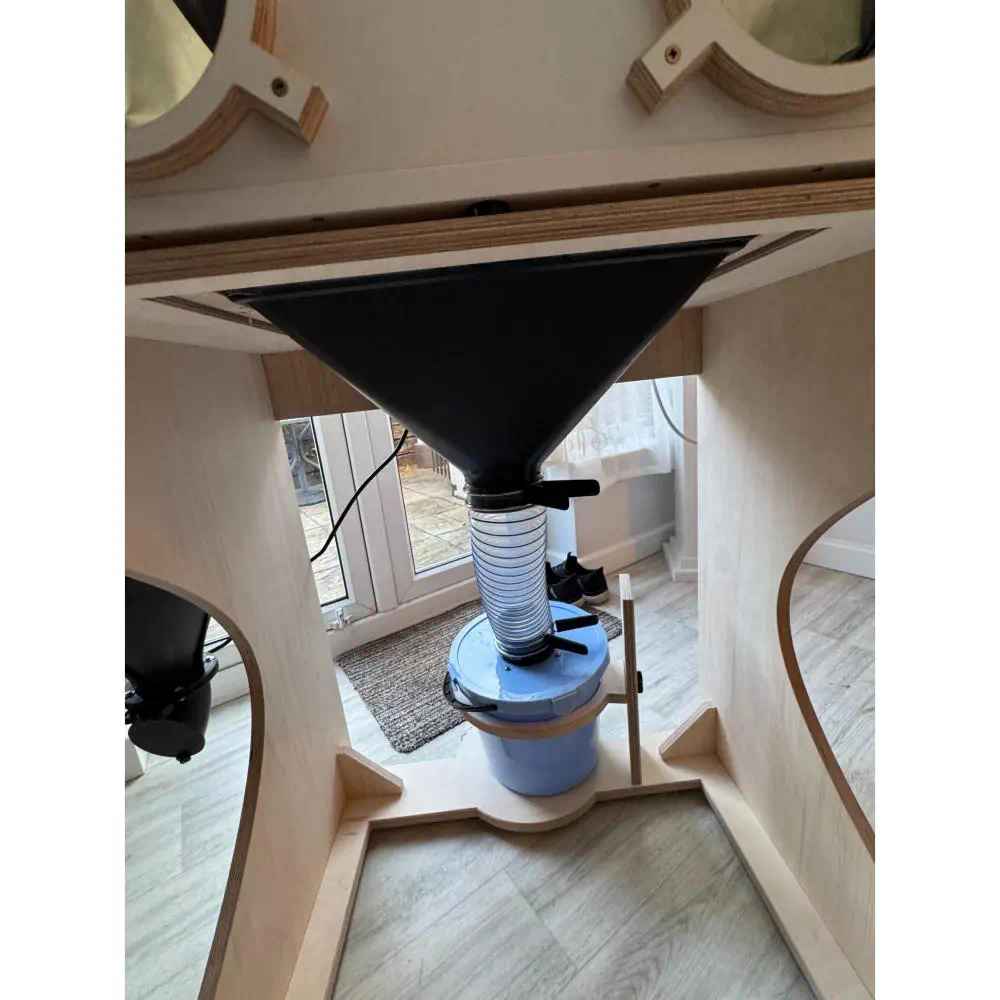

  • Stand supporting the cabinet and accommodating the collection hopper and chippings bucket, included factory fitted hardpoints for our many accessories.
  • Recessed Corian base with easy clean features.
  • Watch OUR DEMO VIDEO HERE https://youtu.be/AB3INzBj00g



Accessories package this comes with :

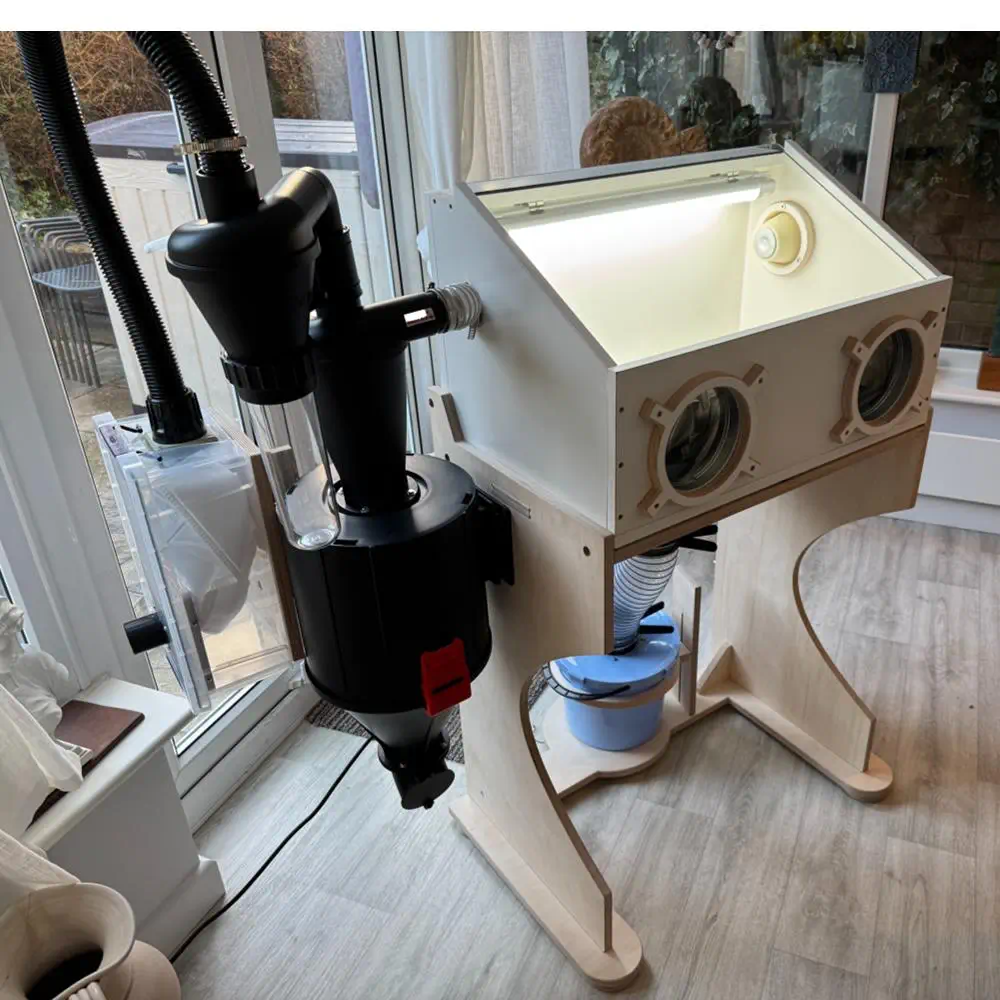

  • Pro Dual Cyclone and fine dust box  extraction for those doing  air abrasive work and grinding  with easy empty feature and up to 99.9% filtration. Makes media collection easier for reuse and saving on expensive H class bags.

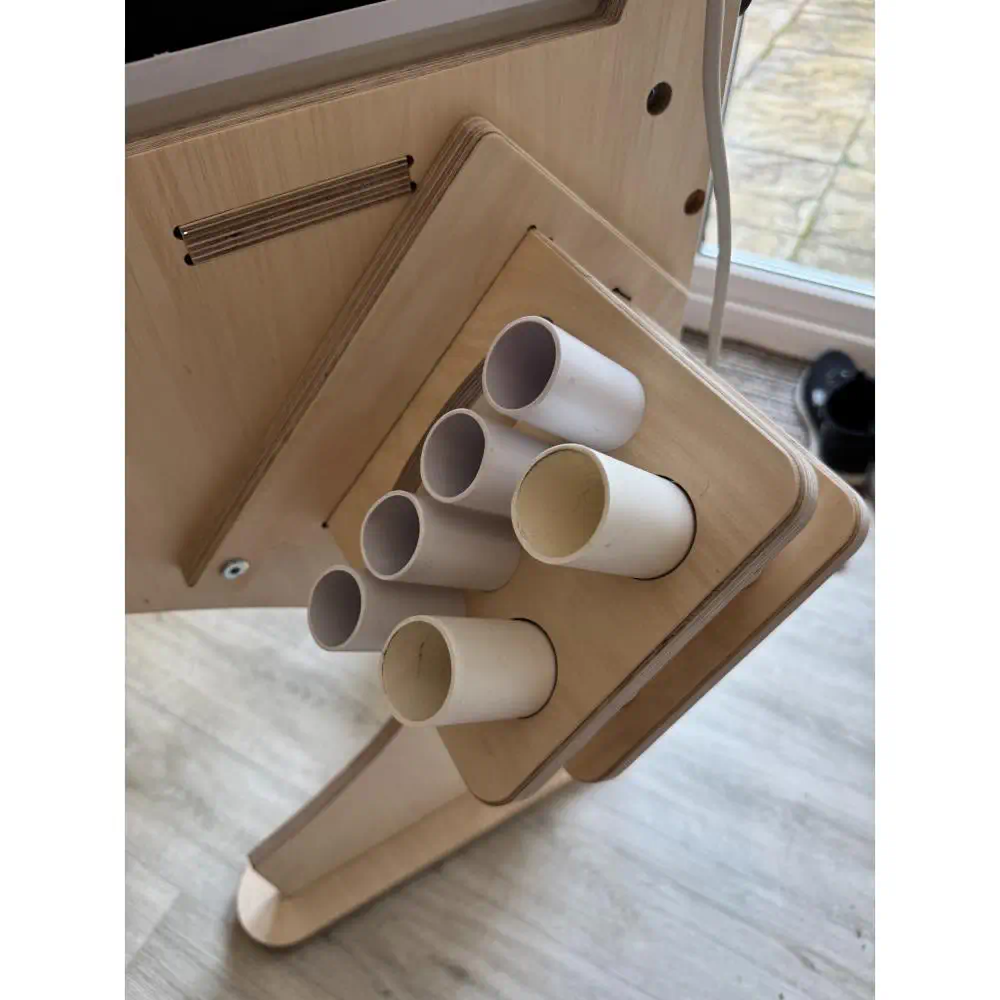

  • Bolt on tool Holder
  • Bolt on electric plug adapter with switches for your cabinet light and extractor

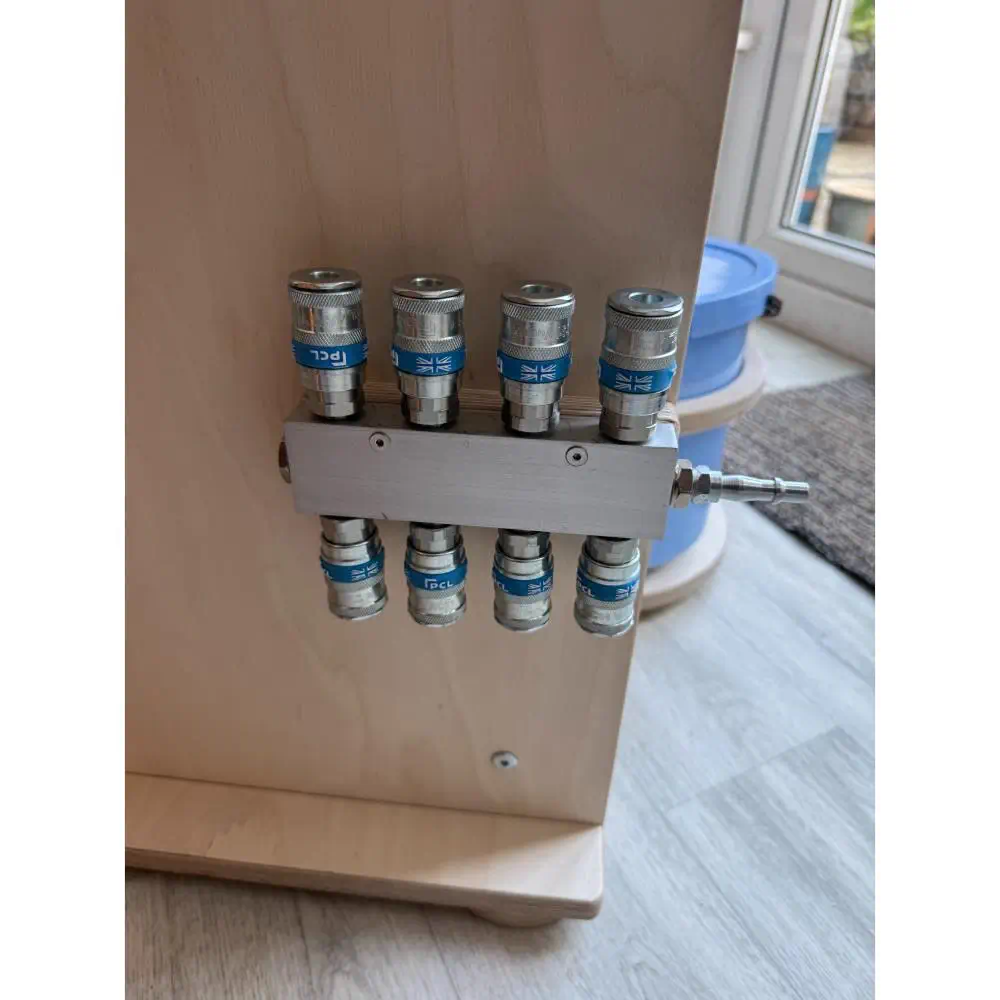

  • Bolt on 8 PCL click in  airline adapters manifold so you can have your air tools ready to go (Euro adapters also available)
  • 6 inch fossil prep pad
  • Does NOT included the vaniman bolt on holder that can be bought separately in our accessories section.



Size:

  • Width 80cm (plus 10cm for extraction port)
  • Depth 65cm
  • Height 120cm

FOR MORE INFO AND TIP  – CHECK OUT MY YOUTUBE CHANNEL http://www.youtube.com/@Tasciorex
